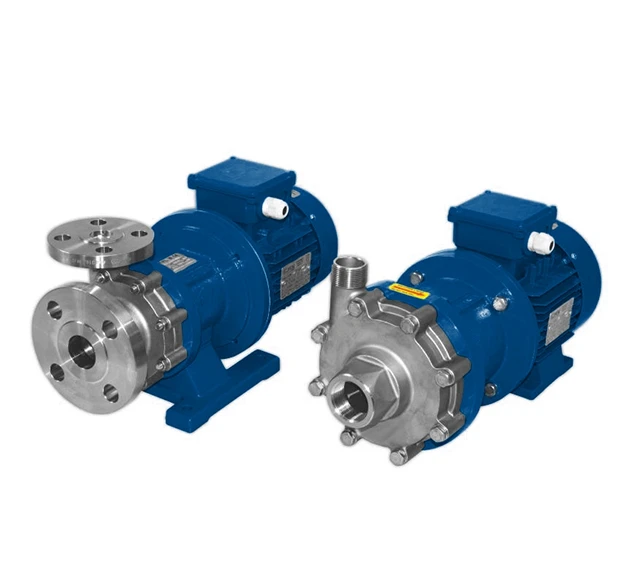

Stainless Steel Magnetic Drive Centrifugal Pump (SS316)



Parameter Specification
Material Stainless Steel SS316 (other alloys available)
Max Pressure 24 m @ 50 Hz / 34 m @ 60 Hz
Max Flow 28 m³/h @ 50 Hz / 40 m³/h @ 60 Hz
System Pressure Up to 25 bar (hydrostatic test 37.5 bar)
Temperature Range ‑40°C to +200°C
Specific Gravity Up to 2,000 kg/dm³
Self‑Priming No
Applications Solvents, acids, alkalis, oils, resins, paints, adhesives, hazardous liquids

Short Description

A sealless stainless steel centrifugal pump engineered for medium to heavy‑duty chemical transfer. Built with SS316 alloy and advanced casting technology, it ensures zero leakage, high reliability, and safe handling of corrosive, hazardous, and viscous fluids.

Main Features

  • Sealless design for zero leakage and maximum safety
  • Advanced casting technology for durability in heavy‑duty applications
  • High system pressure tolerance up to 25 bar (tested at 37.5 bar)
  • Wide temperature range from ‑40°C to +200°C
  • ATEX compliance for hazardous environments
  • Modular impeller design for performance customization
  • Extended MTBF due to minimal rotating parts
